SEC60 Semi-Finished Thermal Frame – 250mm Depth Wood Panel

The SEC60 Thermal Frame by Tecnometalsystem is the original system designed to eliminate thermal bridges and ensure optimal insulation for window fixtures. Supplied as a complete system including plaster mesh, the Semi-Finished version arrives with profiles already cut to your specifications and wood panels pre-fixed, ensuring rapid assembly without the need for welding.

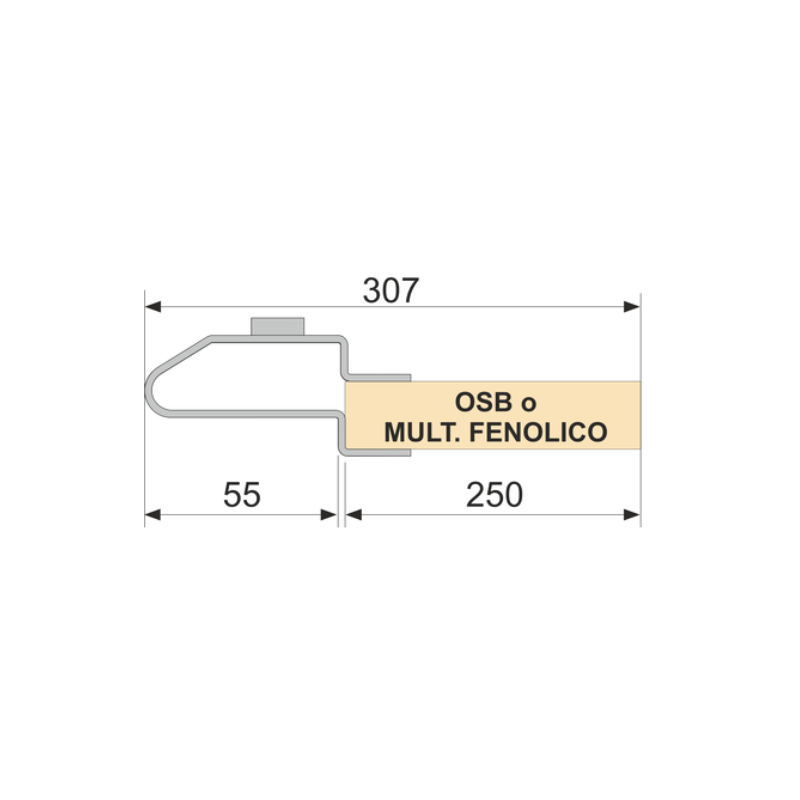

This configuration features a Wood panel with a depth of 250 mm and a thickness of 18 mm, making it the ideal choice for deep wall structures while ensuring maximum stability and long-term durability.

Configuration Guide

ATTENTION: The measurements to be entered must be the EXTERNAL PROFILE DIMENSIONS of the frame (total overall dimensions of the finished product). The product will be cut exactly according to the dimensions provided.

• Enter Width: Indicate the width of your window or balcony door in millimeters (mm).

  • Example: Width (External Profile): 1000 mm

• Enter Height: Indicate the height of your window or balcony door in millimeters (mm).

  • Example: Height (External Profile): 1000 mm

• Add to Cart: You can now add your customized product to the cart.

Multiple items with the same measurements: If you need multiple frames with identical dimensions, you can adjust the quantity directly in the cart. Different measurements: If you need to enter different sizes, return to the product page and repeat the configuration process for each desired variant.

What is Included in the Kit

The product is delivered complete with all components required for final assembly:

• Profile Bundle: 2 mm thick galvanized steel profiles with 250 mm wood panels pre-applied.

• Accessories Box: Containing corner joints (90-degree), brackets, fixing plates, screws, plaster mesh, and locking clips.

• Documentation: Technical Data Sheets and Thermal Transmittance Certifications (according to EN ISO 10211:2017) are available in the "Documents" section.

Technical Specifications

• Profile Material: Galvanized Steel (2 mm thickness).

• Panel: Wood (18 mm thickness / 250 mm depth).

• Weight: Approx. 5.00 kg/m.

• Production: 100% Made in Italy.
