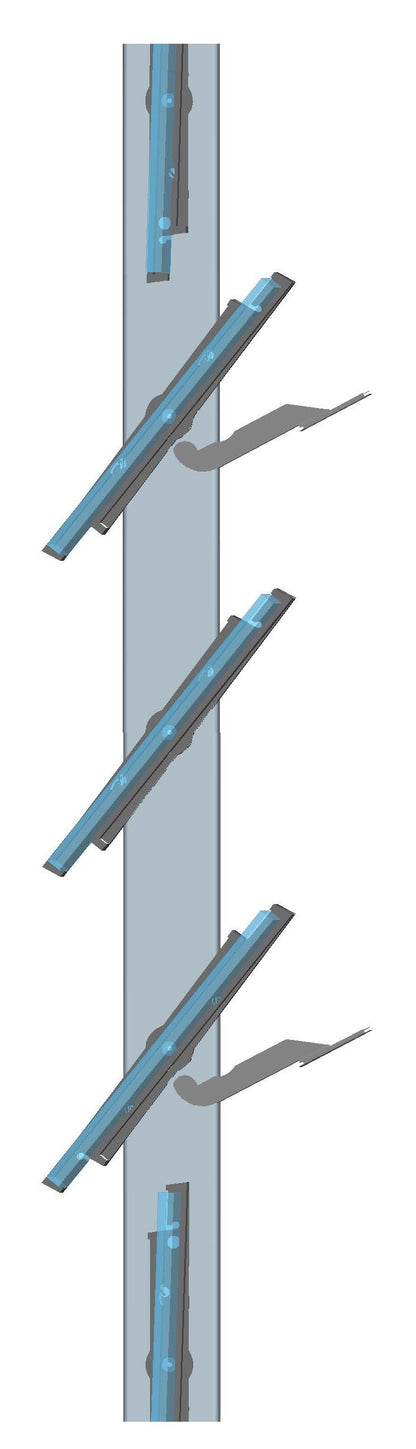

"New Glass" Adjustable Mechanism (TMS) for Glass Shutters – H. 130 mm, Thickness 4/5/6 mm

New Glass is the innovative system by Tecnometalsystem (TMS) specifically designed for adjustable shutters using non-conventional slat materials.

Main Features:

• Material Compatibility: Engineered to accommodate slats made of glass, polycarbonate, plexiglass, or plastic laminates.

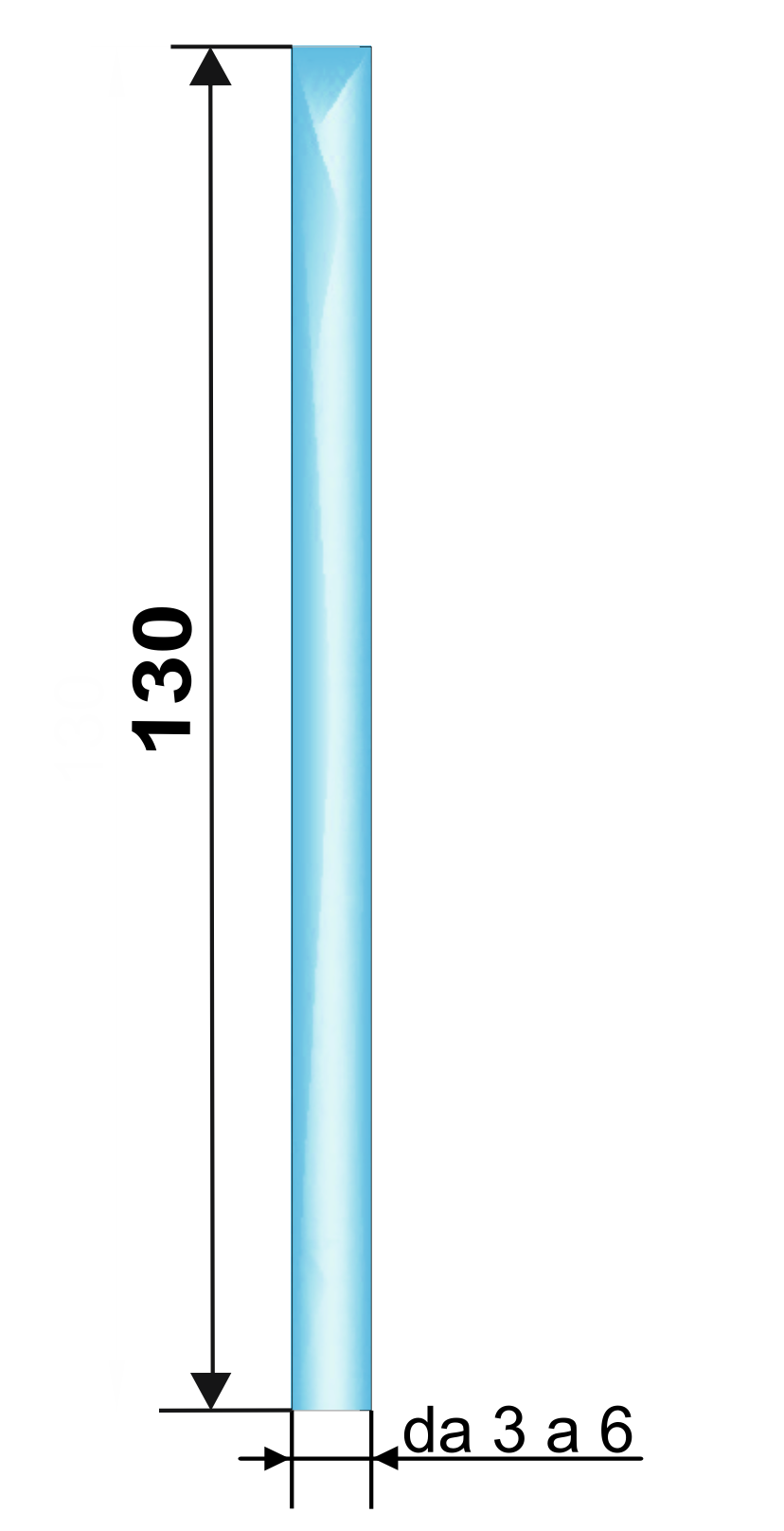

• Panel Specifications: The system is optimized for slats with a maximum height of 130 mm and supports panel thicknesses of 4, 5, or 6 mm.

• Quick and Secure Assembly: Thanks to special retaining clips, the mechanism allows for the easy and secure mounting of various panel types.

• Fixing Accessories: For installation, a Stile Profile Adapter for 36mm Chamber is available as an optional component to expand compatibility.

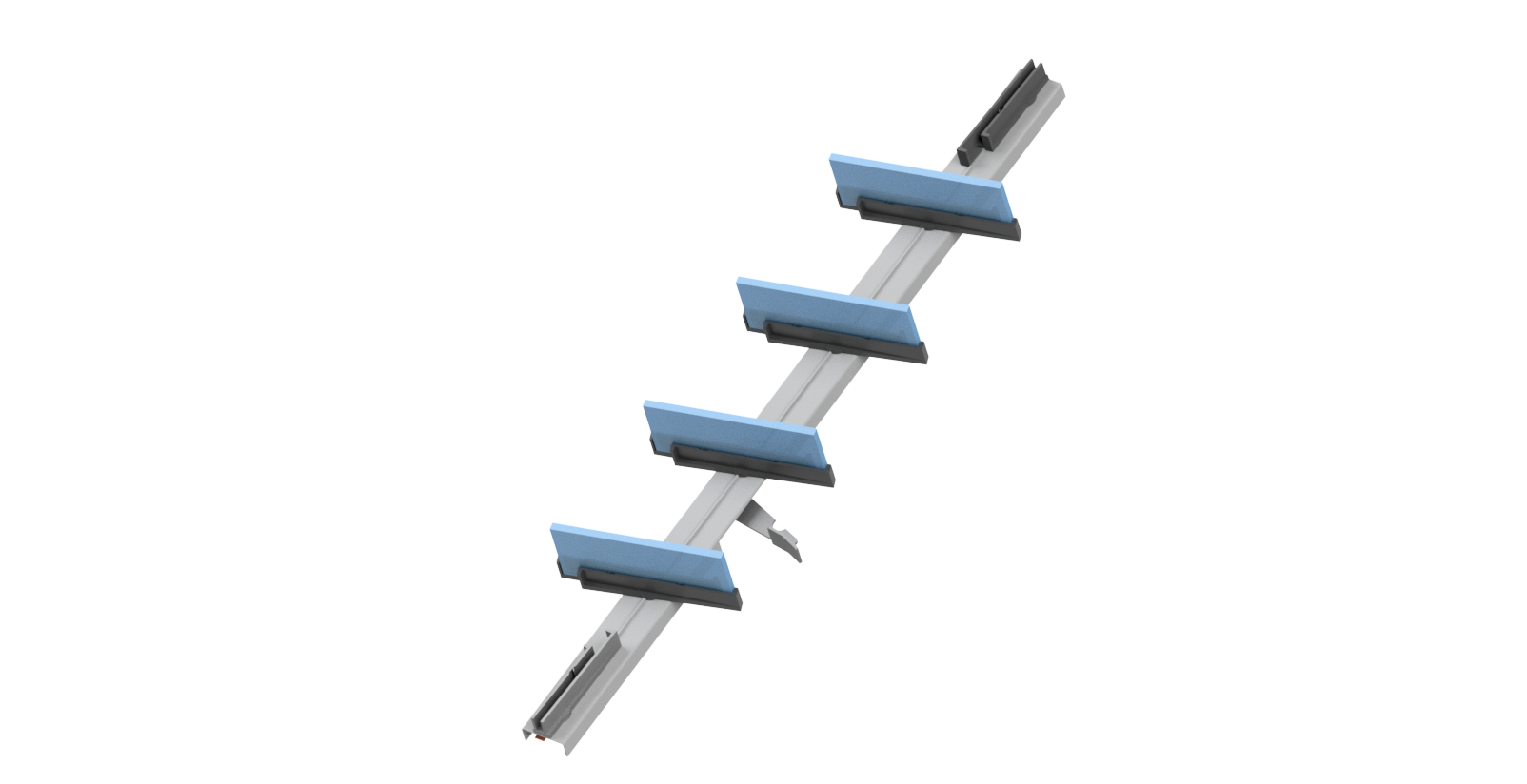

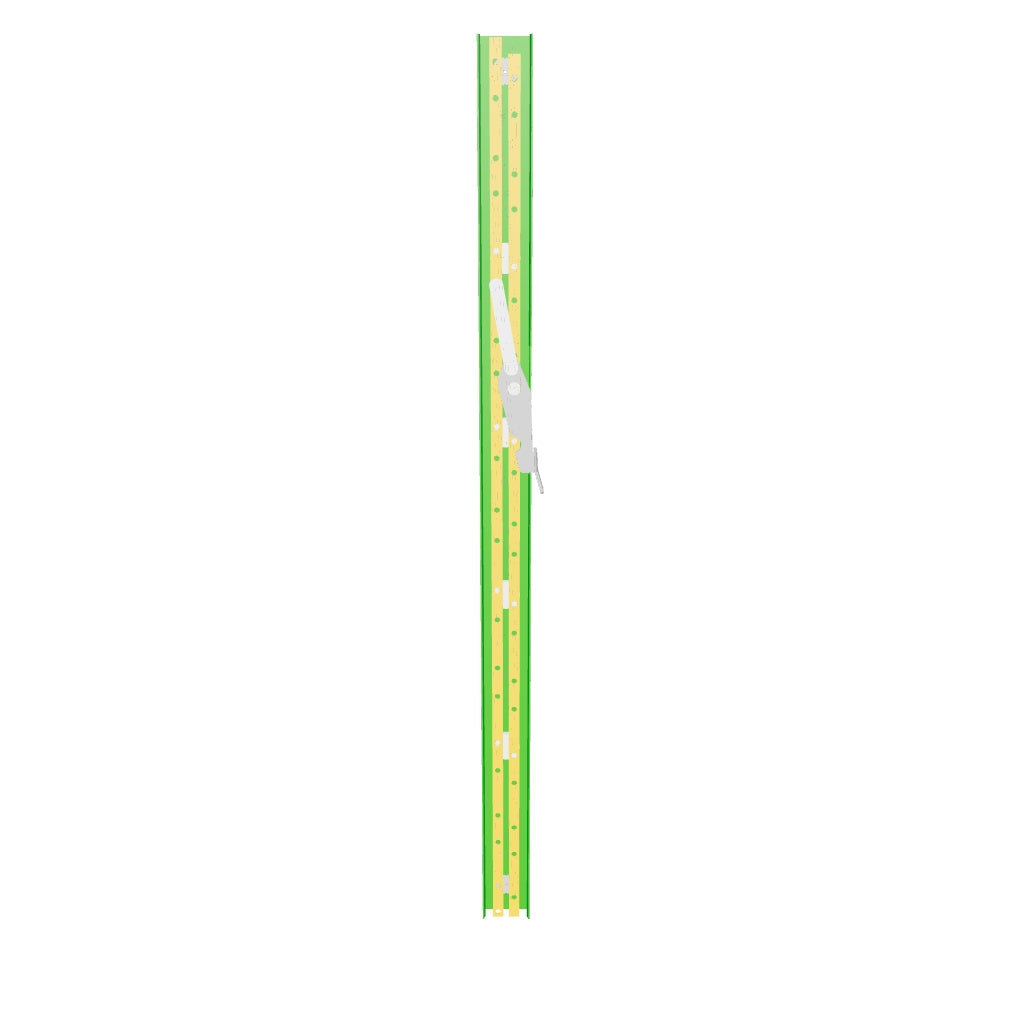

• Light and Air Management: The slats are adjustable and can be locked in intermediate positions using a dedicated handle or side lever click, ensuring precise control over lighting and ventilation.

• Ideal Applications: Its ease of use and high structural safety standards make it perfect for environments requiring strict regulations, such as schools, hospitals, gyms, and public buildings.
