"P70 RUSTICA" (TMS) Adjustable Mechanism for Wooden Shutters – 32-36mm Groove – Zip Version

"P70 RUSTICA" (TMS) Adjustable Mechanism for Wooden Shutters – 32-36mm Groove – Zip Version

€25,19
€25,19
Sale Sold out
Taxes included.
The P70 Rustica system – ZIP Lever version – represents a flagship solution from TECNOMETALSYSTEM srl.
System Components
Color: Nero ral 9005 - V0 (E)
Groove
View full details

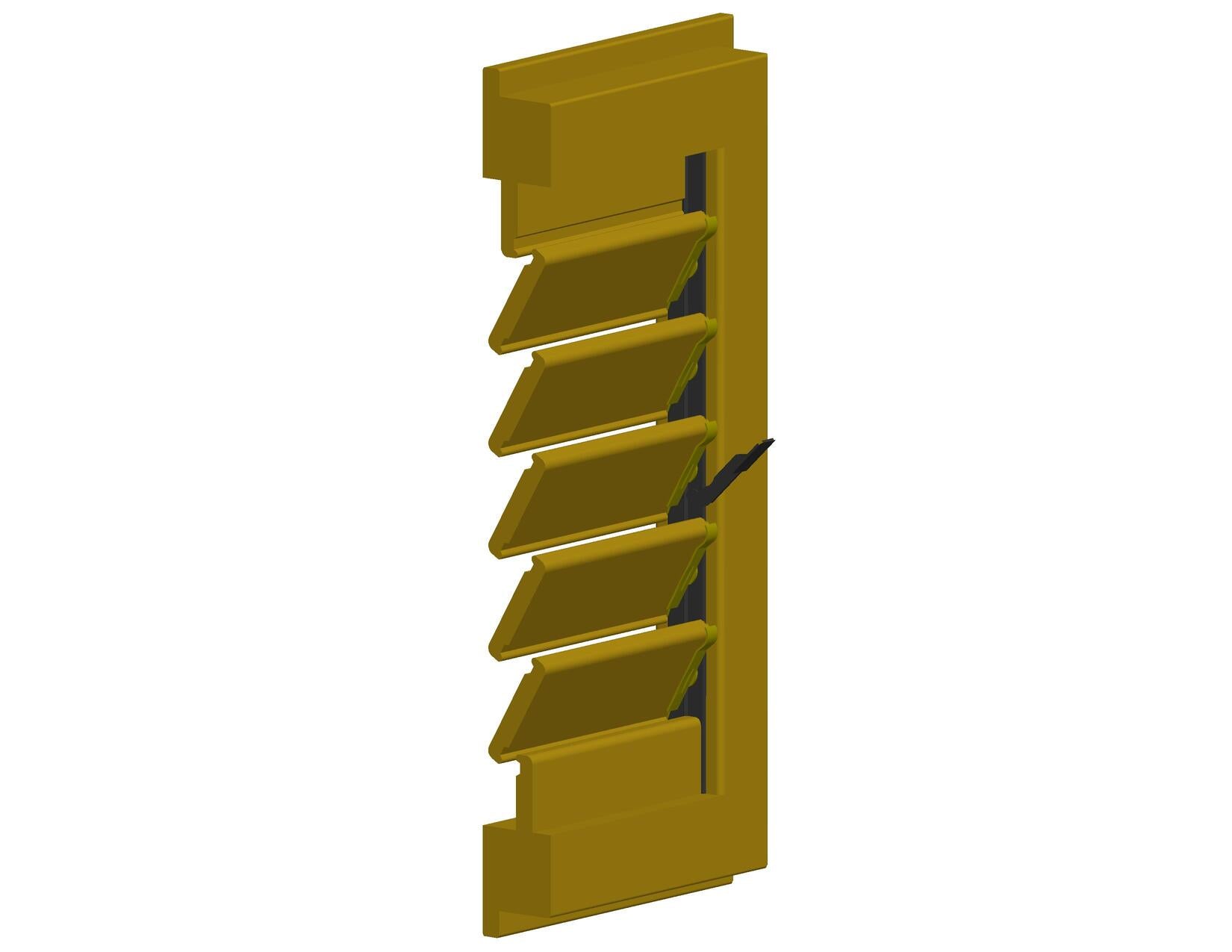

The P70 Rustica system – ZIP Lever version – represents a flagship solution from TECNOMETALSYSTEM srl. This system was conceived to satisfy the most demanding requirements of wooden window enthusiasts, giving the finished fixture a rustic, harmonious, and elegant exterior appearance.

Main Features:

  • Material Compatibility: Specifically engineered for wooden slats.

  • Control Specifications: The mechanism features a 60 mm pitch.

  • Operation: Opening and closing are operated via a metal ZIP Lever.

  • Finish and Colors: Both the control mechanism and the handle are made of metal and supplied pre-painted in Brown or Black.

  • Quick and Simple Assembly: Slat installation and overall shutter assembly are extremely straightforward, following the standard process for common adjustable slat shutters.

  • Fixing Accessories: For installation, optional Stile Profile Adapters for 36mm and 32mm Grooves are available, expanding the system's compatibility.

  • Quality Control: Every single mechanism is provided with a Quality Control Tag (in accordance with all TMS mechanism standards).

Per ottenere maggiori informazioni su "P70 RUSTICA" (TMS) Adjustable Mechanism for Wooden Shutters – 32-36mm Groove – Zip Version, contattaci accedendo alla pagina Contattaci

PDF P70_RUSTICA_LEVAZIP
