"P70 L.A. Double" (TMS) Adjustable Mechanism for Wooden Shutters – Zip Version

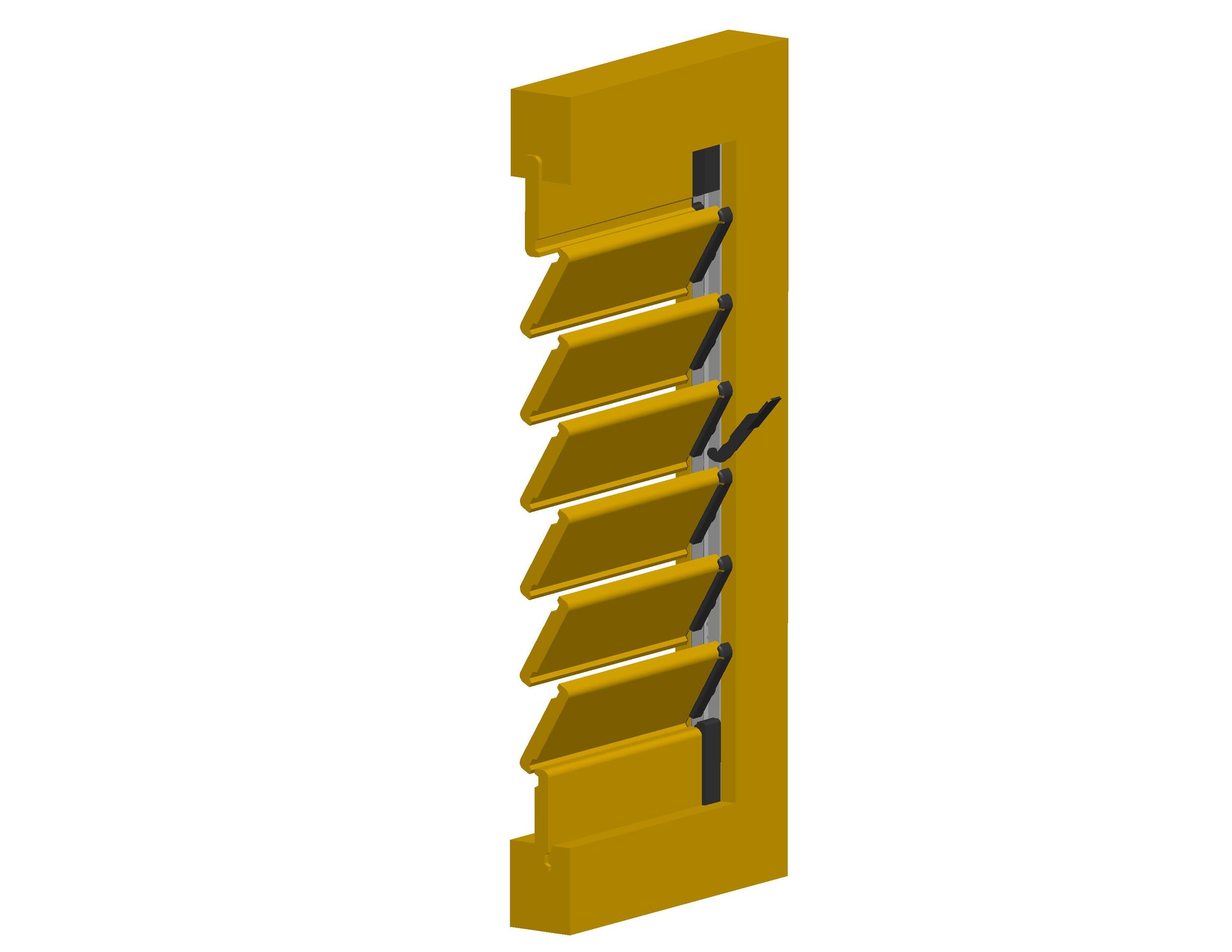

The P70 L.A. Double system – featuring the patented ZIP Lever – is a flagship solution from TECNOMETALSYSTEM srl. The ZIP Lever comes pre-assembled, allowing the window maker to perform a quick, easy, and precise installation. The system is engineered with a slat design that gives the finished fixture a harmonious and elegant exterior appearance. This system also allows for convenient closed-frame assembly.

Main Features:

• Material Compatibility: Specifically designed for wooden slats.

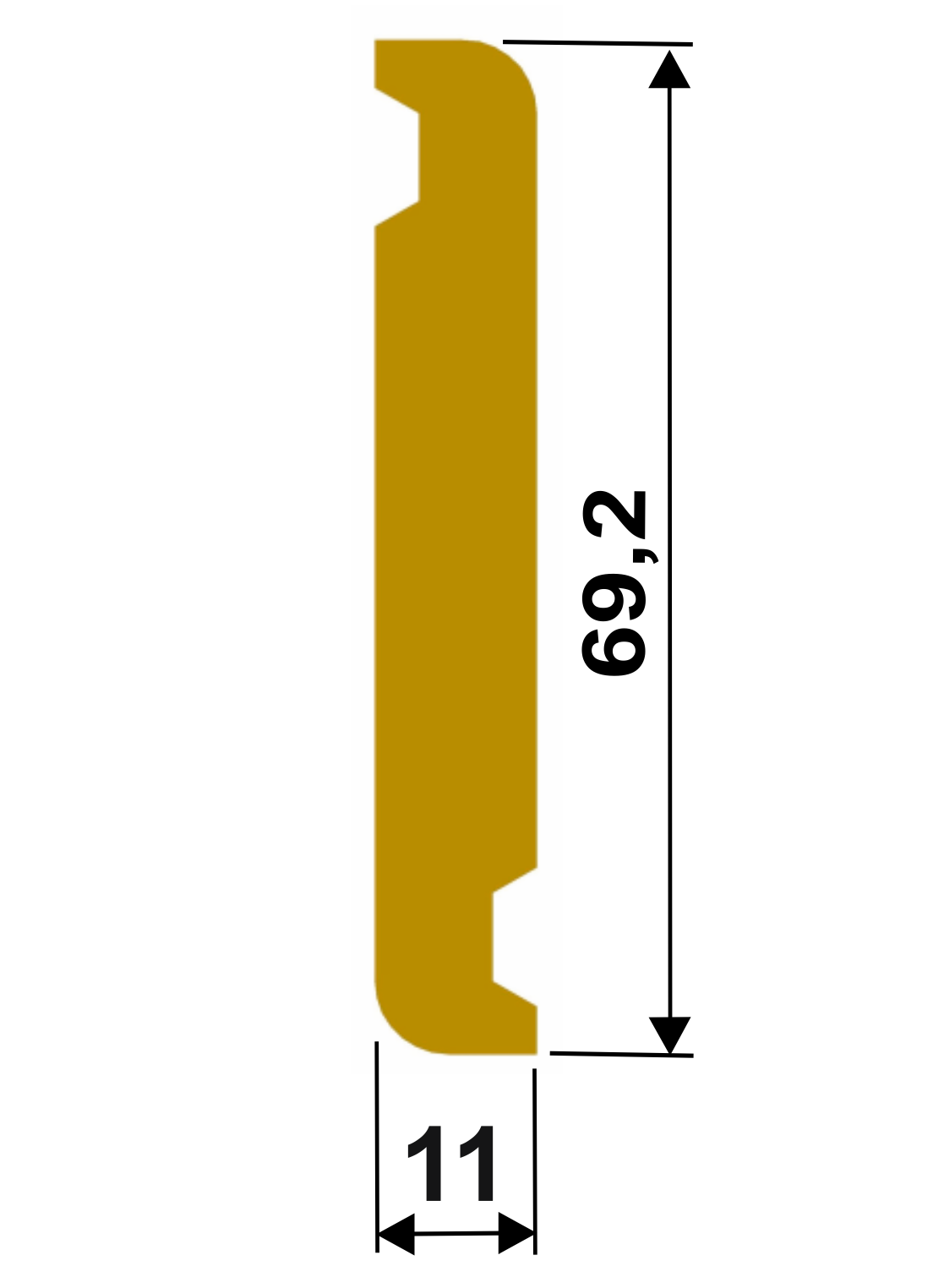

• Slat Specifications: Optimized for a width of 69.2 mm and a thickness of 11 mm.

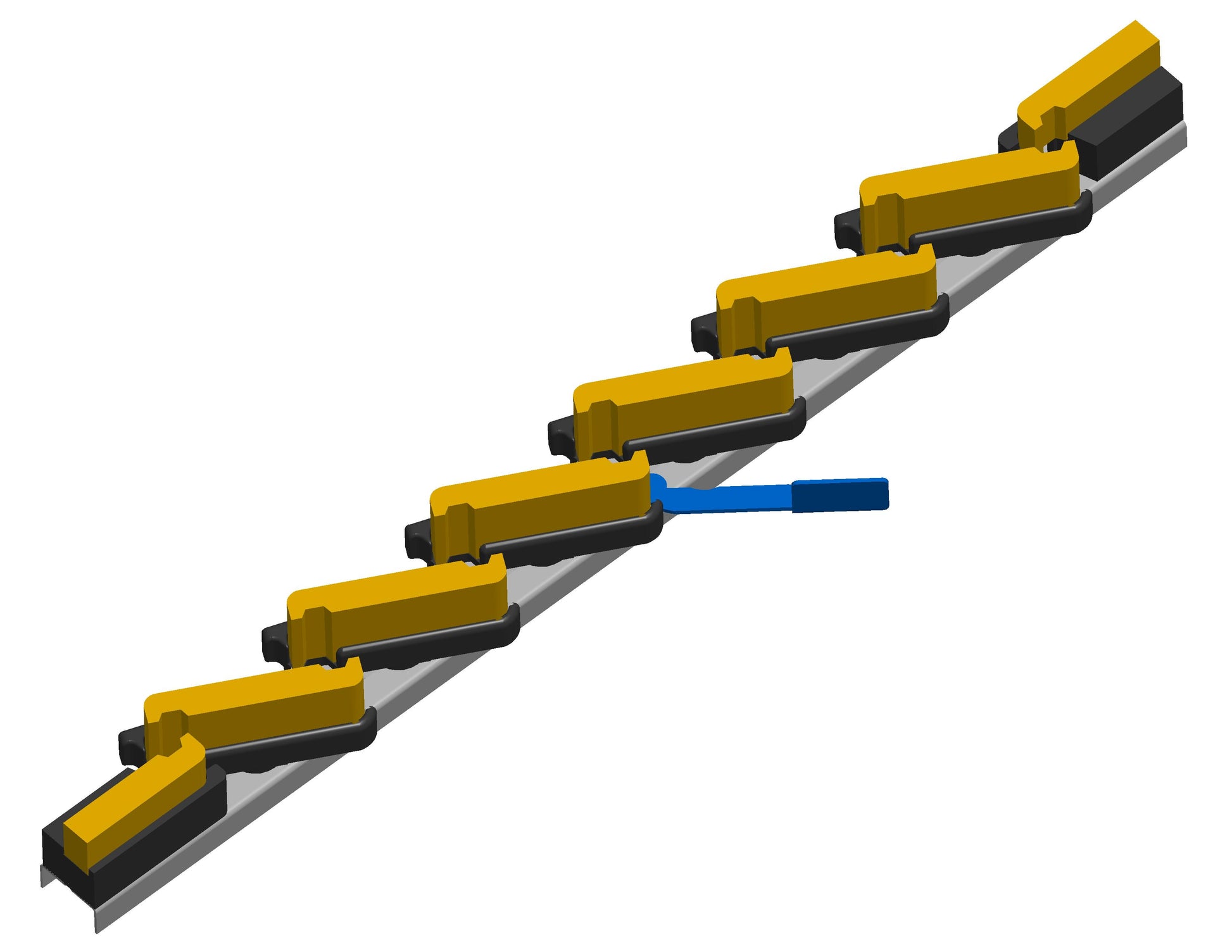

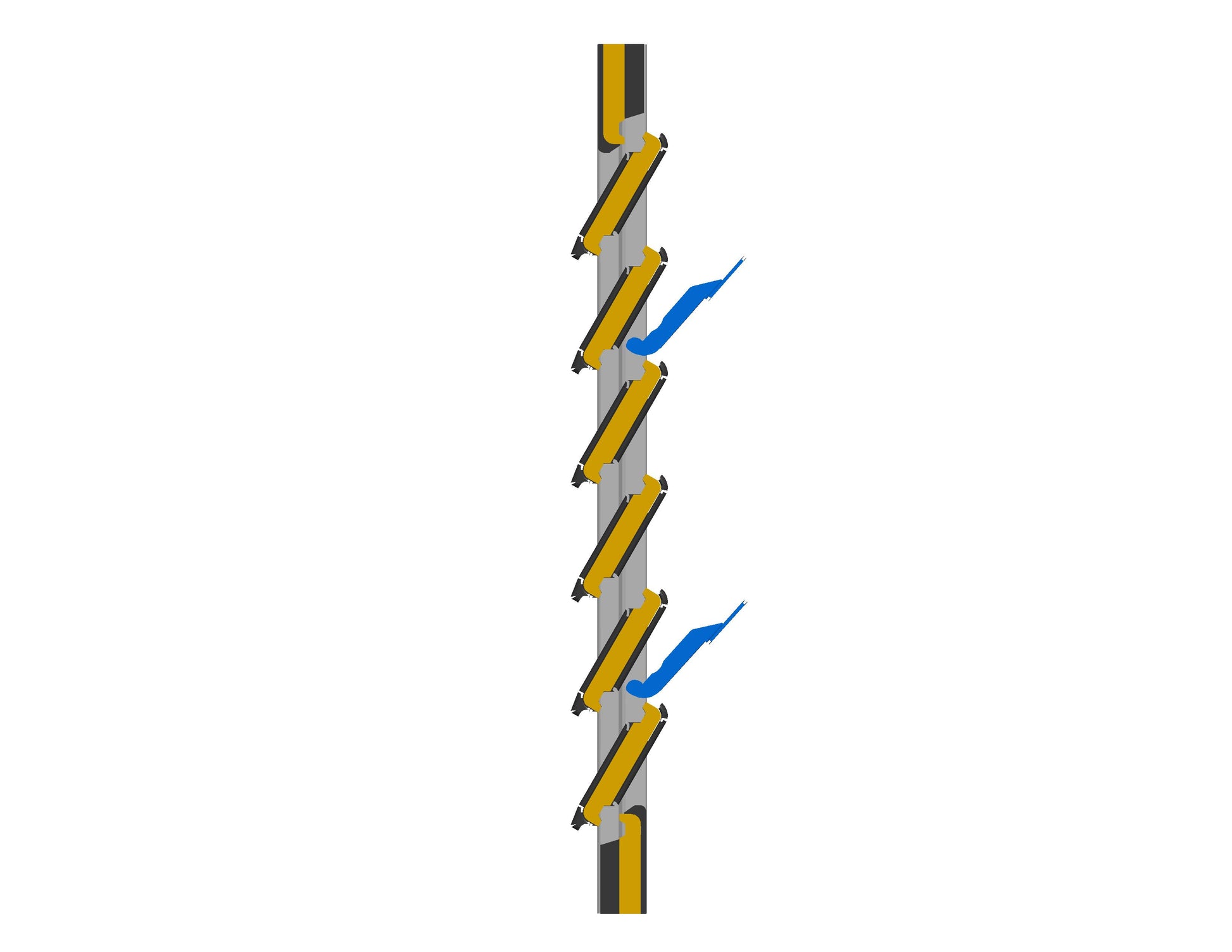

• Operation: Opening and closing are performed via the patented ZIP Lever.

• Fast and Secure Assembly: The pre-mounted ZIP Lever ensures a rapid and accurate installation. The system supports closed-frame assembly of the fixture.

• Light and Air Management: Features the "No Lux" system, which prevents light leakage through specialized punching of the stiles.

• Quality Control: Every single mechanism is provided with a Quality Control Tag (in accordance with all TMS mechanism standards).
