SEC60 SUPER Semi-Finished Thermal Frame – Wood + EPS Panel (180mm Depth)

The SEC60 SUPER is the original solution for high thermal insulation, supplied as a complete system including plaster mesh to ensure a flawless wall finish. Thanks to the integration of an EPS (polystyrene) panel, it eliminates thermal bridges and prevents condensation and mold growth around the window edges. It is supplied as a Semi-Finished version, with profiles pre-cut to your specifications and panels pre-fixed for rapid assembly without the need for welding.

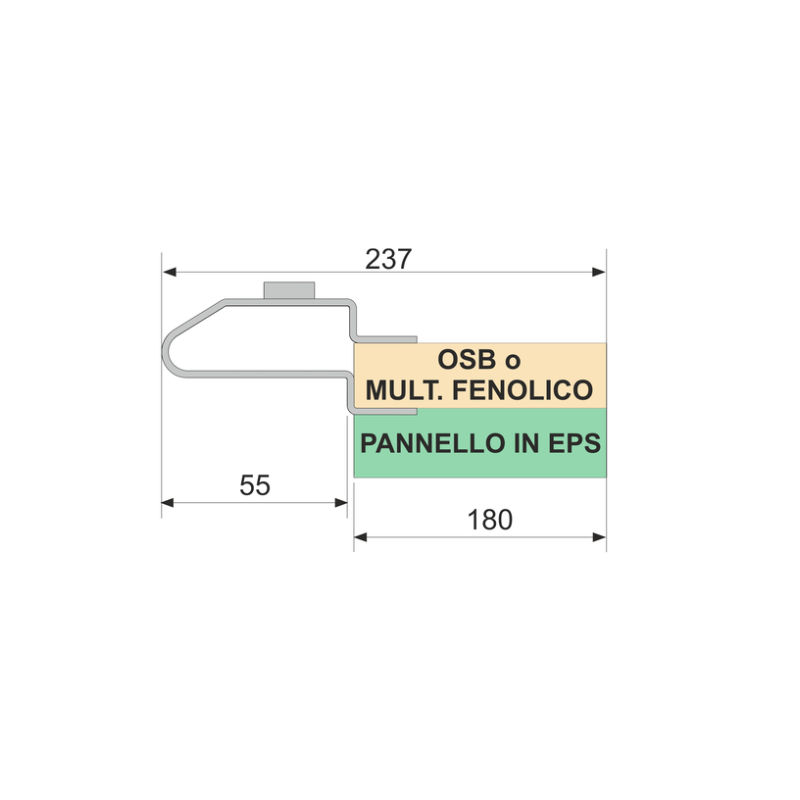

This configuration features a coupled panel (18 mm Wood + 20 mm EPS) with a total depth of 180 mm.

Configuration Guide

ATTENTION: The measurements to be entered must be the EXTERNAL PROFILE DIMENSIONS of the frame (total overall dimensions of the finished product). The product will be cut exactly according to the dimensions provided.

• Enter Width: Indicate the width of your window or balcony door in millimeters (mm).

  • Example: Width (External Profile): 1000 mm

• Enter Height: Indicate the height of your window or balcony door in millimeters (mm).

  • Example: Height (External Profile): 1000 mm

• Add to Cart: You can now add your customized product to the cart.

Multiple items with the same measurements: If you need multiple frames with identical dimensions, you can adjust the quantity directly in the cart. Different measurements: If you need to enter different sizes, return to the product page and repeat the configuration process for each desired variant.

What is Included in the Kit

The kit includes all necessary components for final assembly:

• Profile Bundle: 2 mm thick galvanized steel profiles with 180 mm Wood and EPS panels pre-applied.

• Accessories Box: Corner joints (90-degree), brackets, fixing plates, screws, plaster mesh, and locking clips.

• Documentation: Technical Data Sheets and Thermal Transmittance Certifications are available in the "Documents" section.

Technical Specifications

• Profile Material: Galvanized Steel (2 mm thickness).

• Insulating Panel: Wood (18 mm) + EPS (20 mm).

• Total Depth: 180 mm.

• Weight: Approx. 4.50 kg/m.

• Production: 100% Made in Italy.
